Measuring Heads

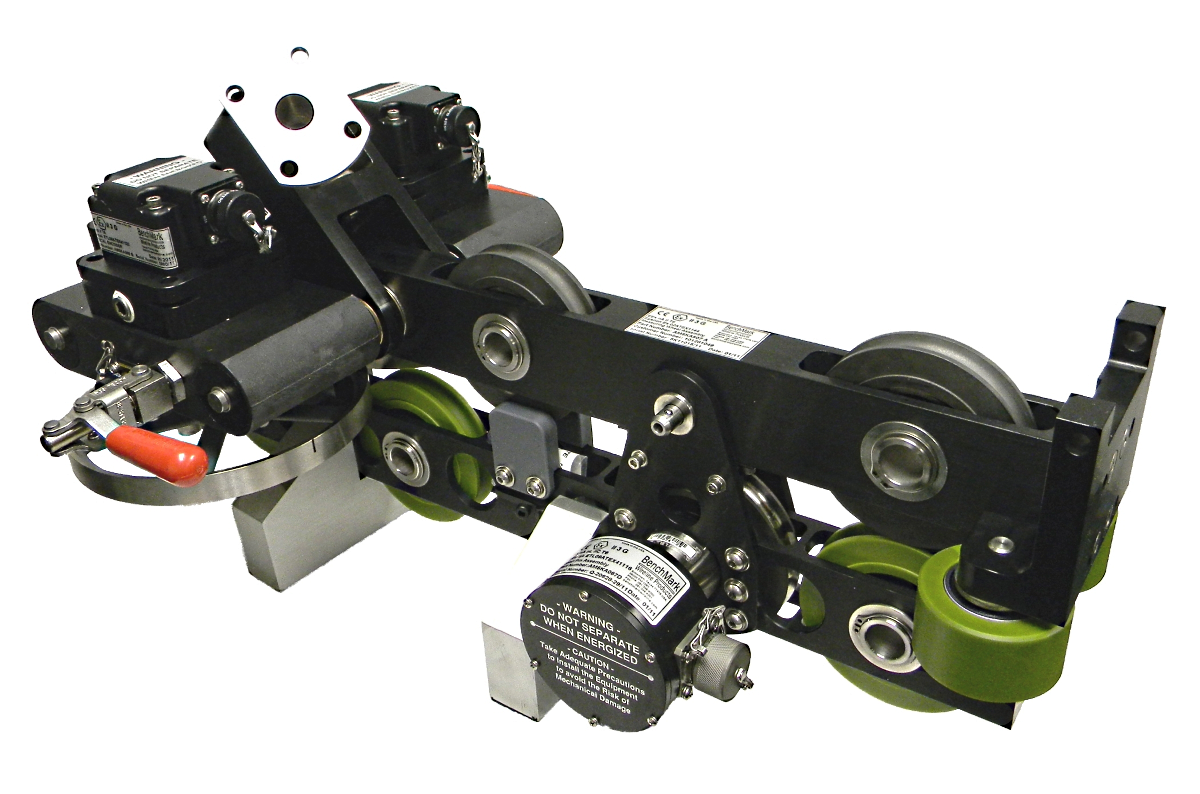

AM5K Measuring Head

The AM5K is a very versatile Open Hole/Cased Hole device for measuring depth and tension for all types of operations. It has straight-line measurement, handles many cable sizes and is designed to be mounted on a spooling arm.

- Max Tension 25000 lbs.
- Horiz and Vert guide rollers
- Weight 58 pounds
- Mount – spooling arm
- Encoders 1 or 2 & Load Pin
- Line size 4.8mm to 22.0mm - .190” to .875”

View Spec Sheet LIVE DEMO

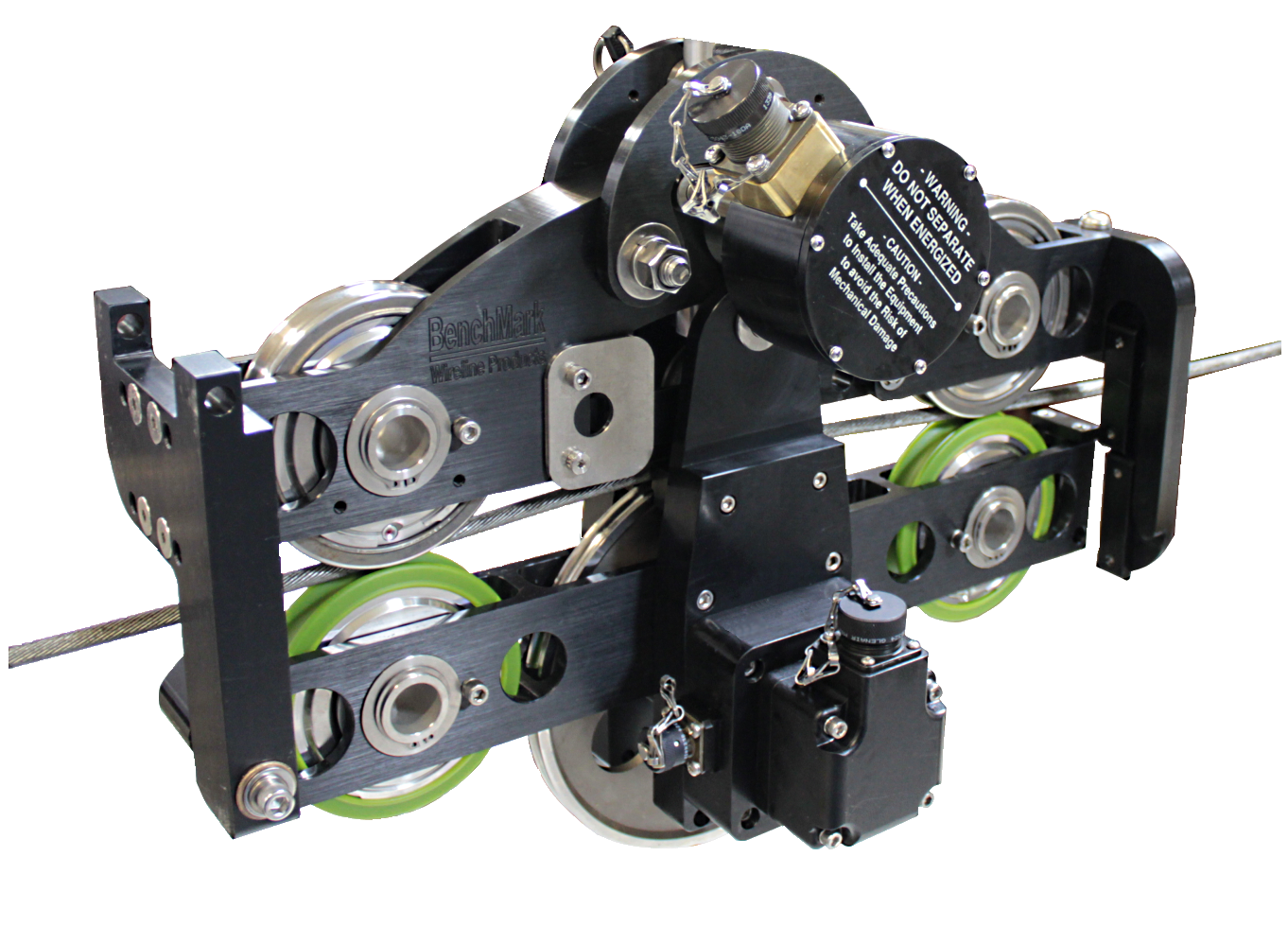

AM3K Measuring Head

The AM3K is a light, compact, Cases Hole depth and line tension measuring device. It can be mounted in 3 different spooling arm configurations with a single quick release pin.

- Max Tension 10000 pounds
- Weight 30 pounds
- Mount – spooling arm 3 types
- Encoders 1 or 2 & Load Pin
- Line size 3/16” to 3/8”

View Spec Sheet LIVE DEMO

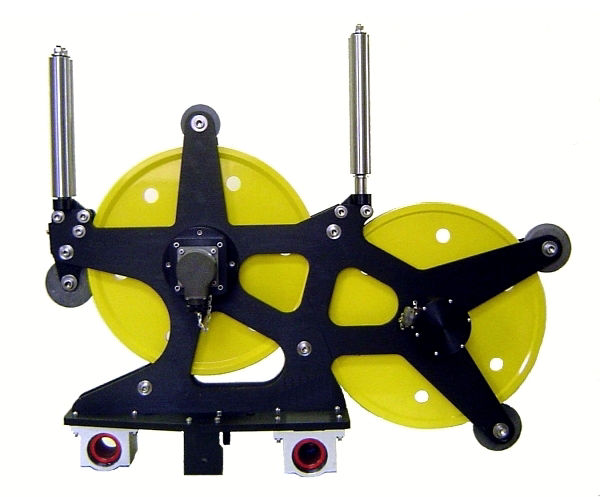

Shark Measuring Head

The Shark Measuring Head is a compact, economical measuring device that is very rugged. It has both an encoder and a load pin to measure both depth and tension. It is bottom mounted.

- Max Tension 4500 lbs.
- Wheel circumference 4.00 ft.
- 2 Wheels
- Weight 94 lbs.
- Mount - bottom
- Encoder & Load Pin
- Line size .092mm - .125mm and 3/16”

View Spec Sheet LIVE DEMO

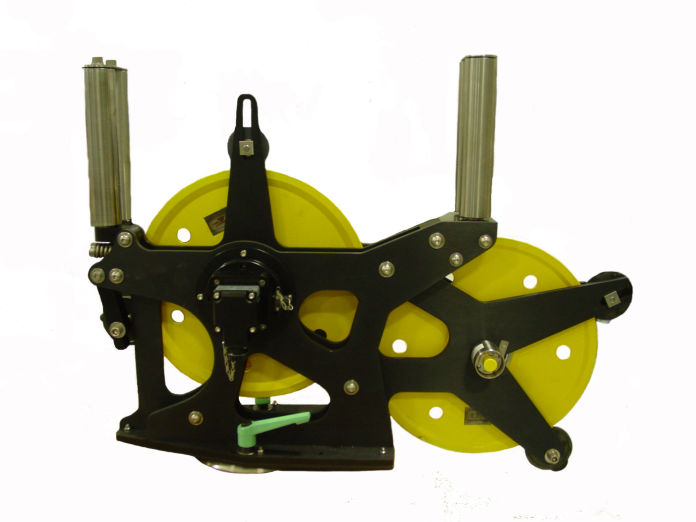

MegaMouth Measuring Head

The MegaMouth Measuring Head is a medium size measuring device with increased tension capacity that can handle larger line sizes. It has both an encoder and a load pin to measure both depth and tension. It is bottom mounted.

- Max Tension 9000 lbs.
- Wheel circumference 4.00 ft.
- 2 Wheels
- Weight 110 lbs.
- Mount - bottom
- Encoder & Load Pin
- Line size .092mm - .125mm and 3/16” to 1/4”

View Spec Sheet LIVE DEMO

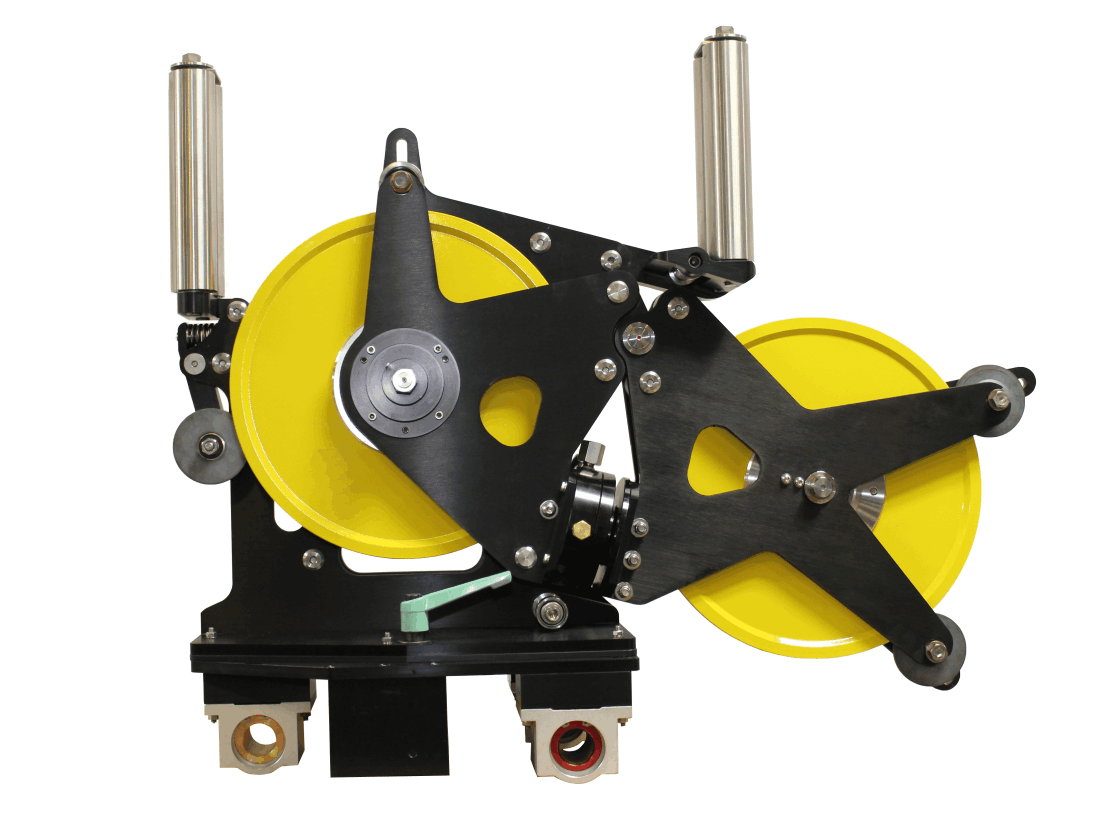

Tiger Shark Measuring Head

The Tiger Shark Measuring Head is similar to the MegaMouth but has a third wheel for greater accuracy. It has both an encoder and a load pin plus a hydraulic load cell and it measures both depth and tension. It is bottom mounted.

- Max Tension 9000 lbs.
- Wheel circumference 4.00 ft.
- 3 Wheels with Hydraulic Load Cell
- Weight 141 lbs.
- Mount - bottom
- Encoder & Load Pin
- Line size .092mm - .125mm and 3/16” to 1/4”

View Spec Sheet LIVE DEMO

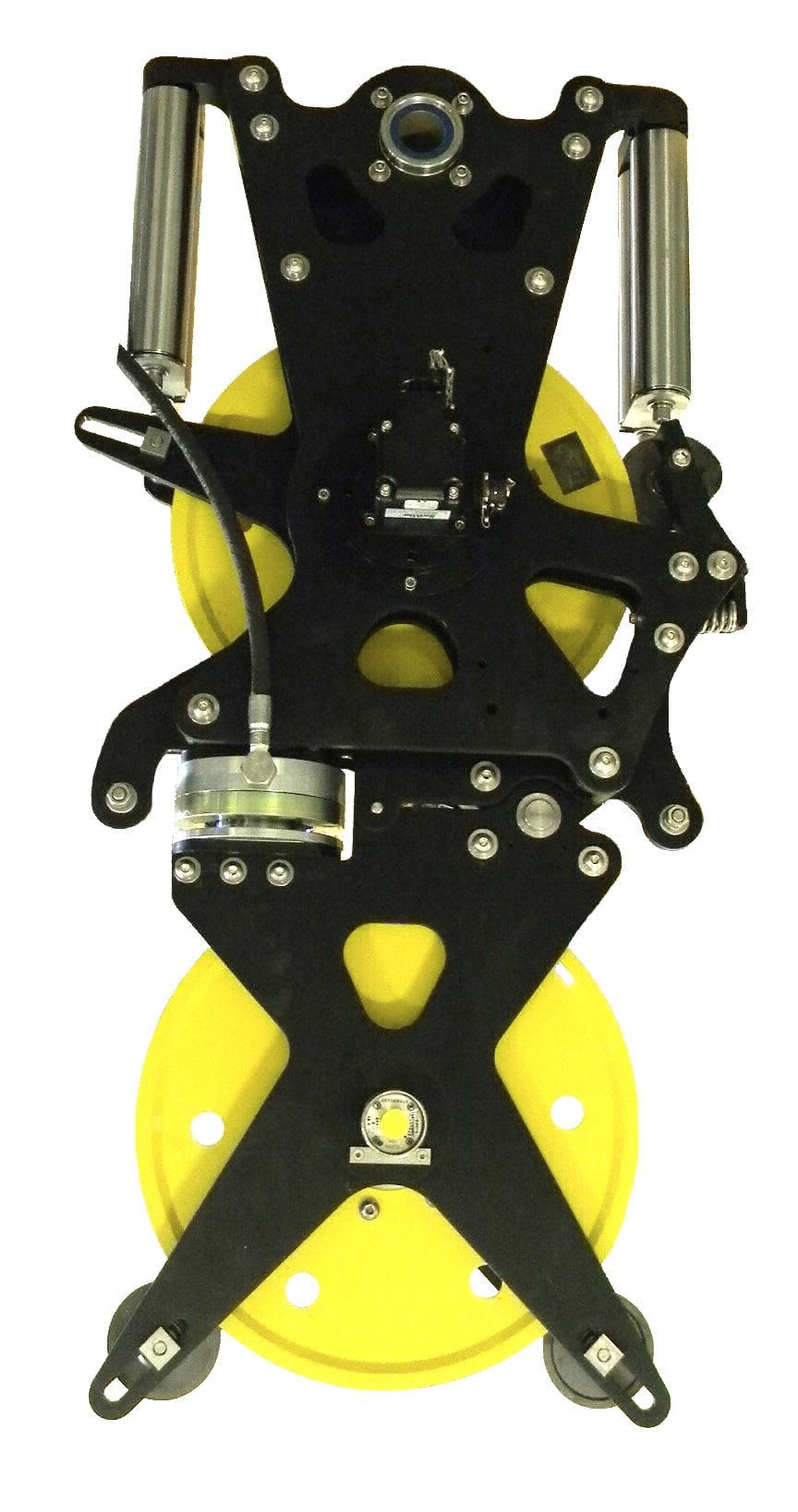

Dolphin Measuring Head

The Dolphin Measuring Head is similar to the MegaMouth but has a third wheel for greater accuracy. It has both an encoder and a load pin plus a hydraulic load cell and it measures both depth and tension. It is top mounted.

- Max Tension 9000 lbs.
- Wheel circumference 4.00 ft.
- 3 Wheels with Hydraulic Load Cell
- Weight 132 pounds
- Mount - top
- Encoder & Load Pin
- Line size .092mm - .125mm and 3/16” to 1/4”

View Spec Sheet LIVE DEMO

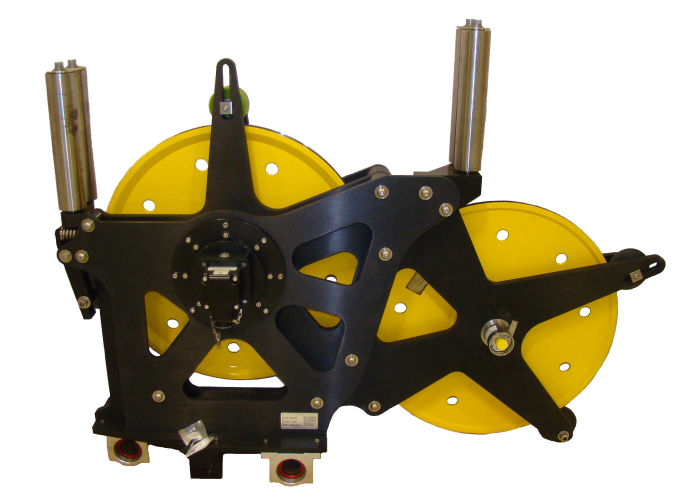

Mako Measuring Head

The Mako Measuring Head is the base model of the largest series of measuring heads. It has a greater maximum tension capacity, can handle larger line sizes and the wheels and overall structure is larger than the other measuring heads. It measures both depth and tension and it is bottom mounted.

- Max Tension 15000 lbs.
- Wheel circumference 5.33 ft.
- 2 Wheels
- Weight 133 lbs.
- Mount - bottom
- Encoder & Load Pin
- Line size .092mm - .160mm and 3/16” to 5/16”

View Spec Sheet LIVE DEMO

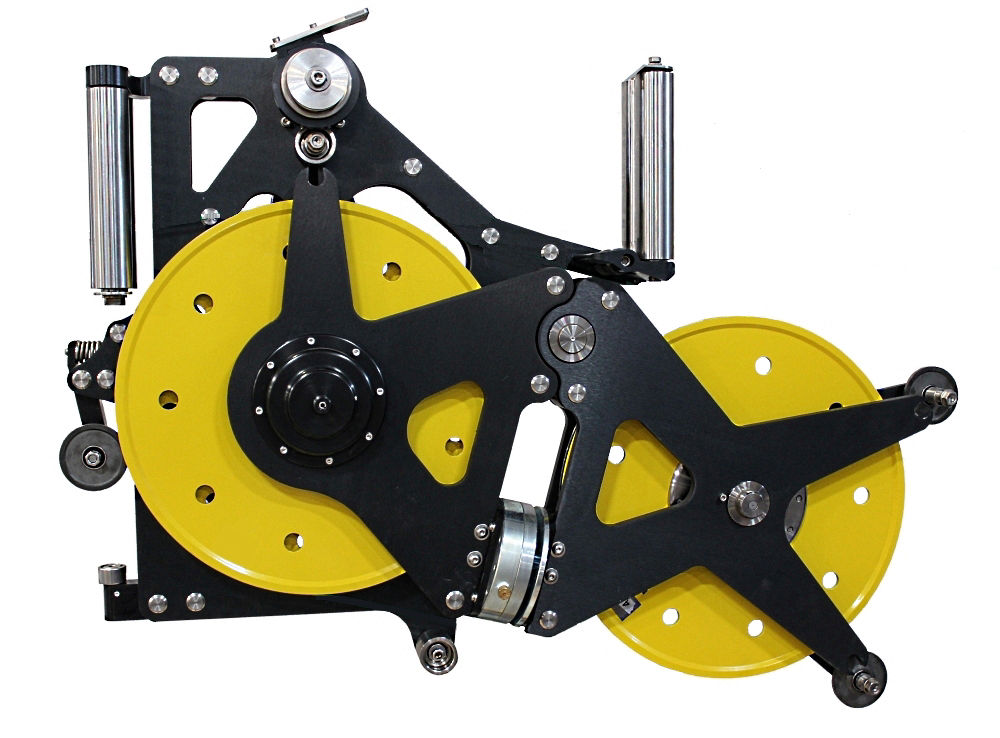

Orca Measuring Head

The "Orca” Slickline/Braided Line Measuring Device is a heavy duty two wheeled
device which accurately measures both wireline depth and tension. This unit contains a secondary hydraulic tension device.

- Max Tension 15000 lbs.
- 3 wheels with Hydraulic Load Cell
- Weight 310 lbs.
- Mount - 40mm overhead spooling bar
- 2 optical encoders and 2 load pins
- Line size - .092" – 5/16” 2.33 mm –7.93 mm

View Spec Sheet LIVE DEMO

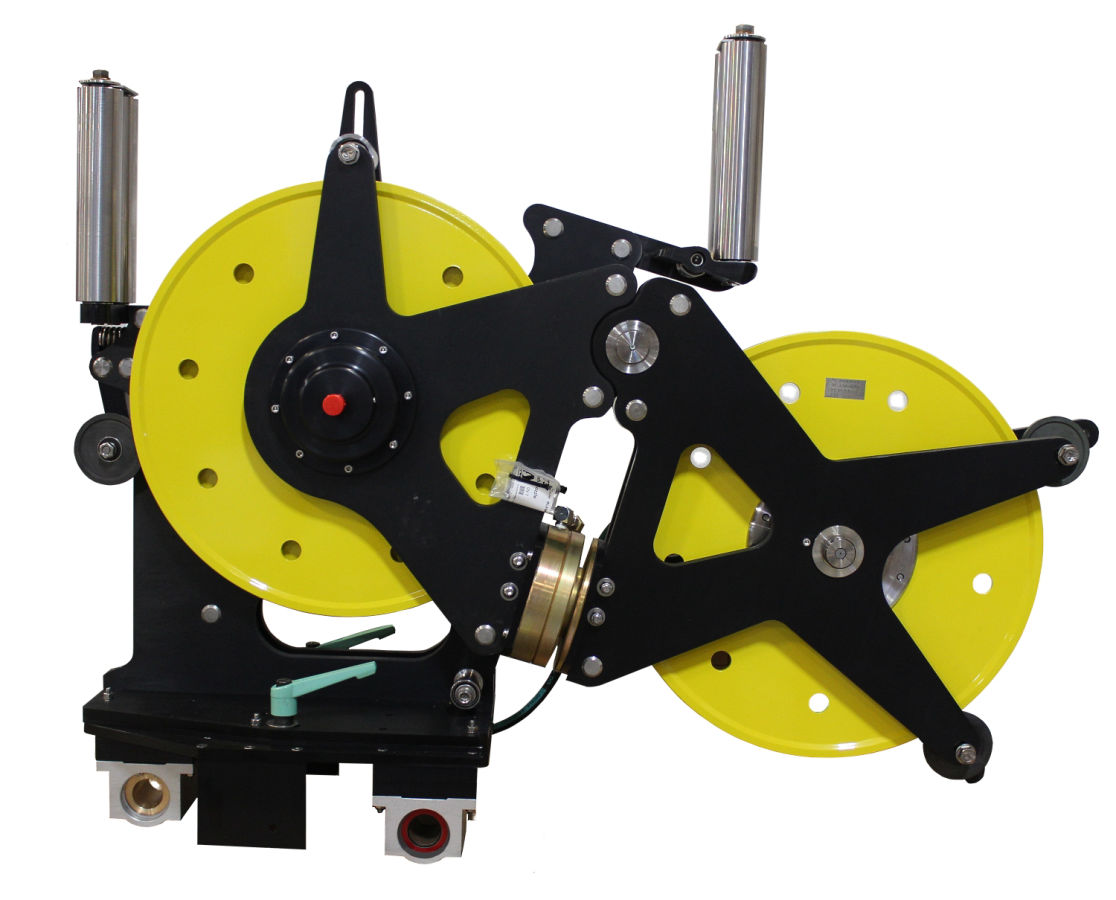

Thresher Measuring Head

The Thresher Measuring Head is similar to the Mako model plus it has a 3rd wheel for increased accuracy. It has both an encoder and a load pin plus a hydraulic load cell and it measures both depth and tension. The Thresher is a bottom mounted device.

- Max Tension 15000 lbs.
- Wheel circumference 5.33 ft.
- 3 wheels with Hydraulic Load Cell
- Weight 350 pounds
- Mount - bottom
- Encoder & Load Pin
- Line size .092mm - .160mm and 3/16” to 5/16”

View Spec Sheet LIVE DEMO
