Winch Operator Panels

Universal Panels

Mobirise

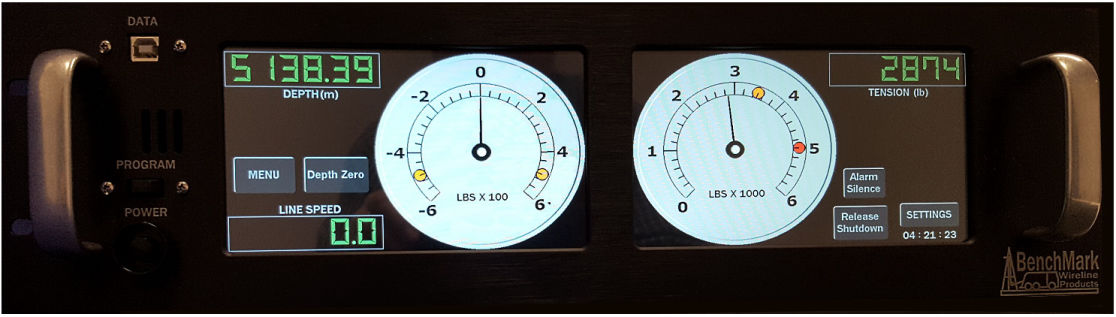

AMD2A040

The newest winch operator panel is the BenchMark portfolio is the AMD2A Universal Panel. This panel is capable of running in open hole, cased hole, coated line, and slickline applications. It is compatible will all BenchMark measuring heads and load cells.

Mobirise

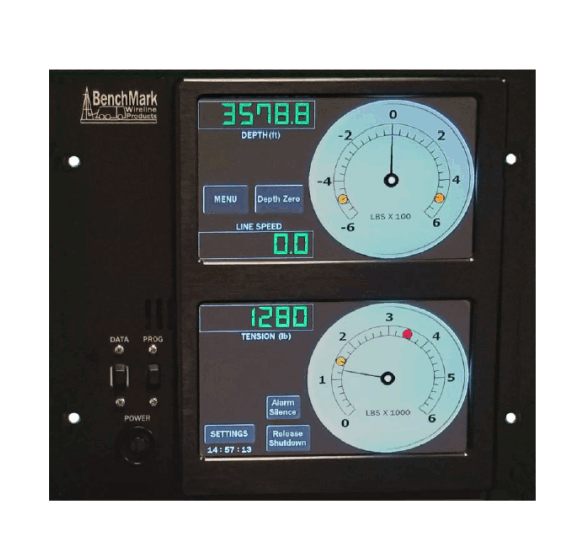

AMD2A050

As vertical layout sister of the AMD2A040 Universal Panel, this panel is also capable of running in open hole, cased hole, coated line, and slickline applications. It is compatible will all BenchMark measuring heads and load cells.

Windows Panels

Mobirise

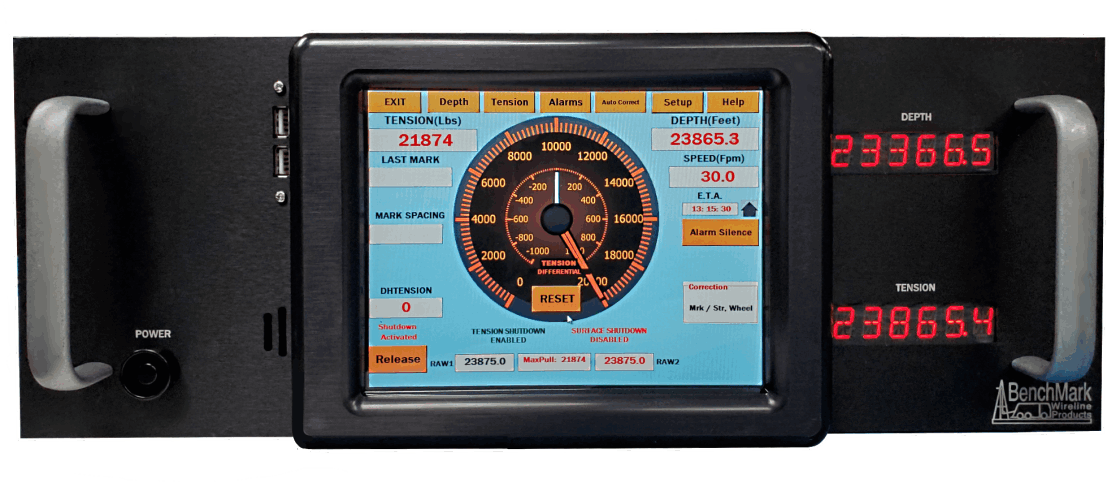

AMD6A244

Our Windows based Open Hole panel offers the highest level of functionality. The 12.1 inch infared touch screen offers maximum visibility.

Mobirise

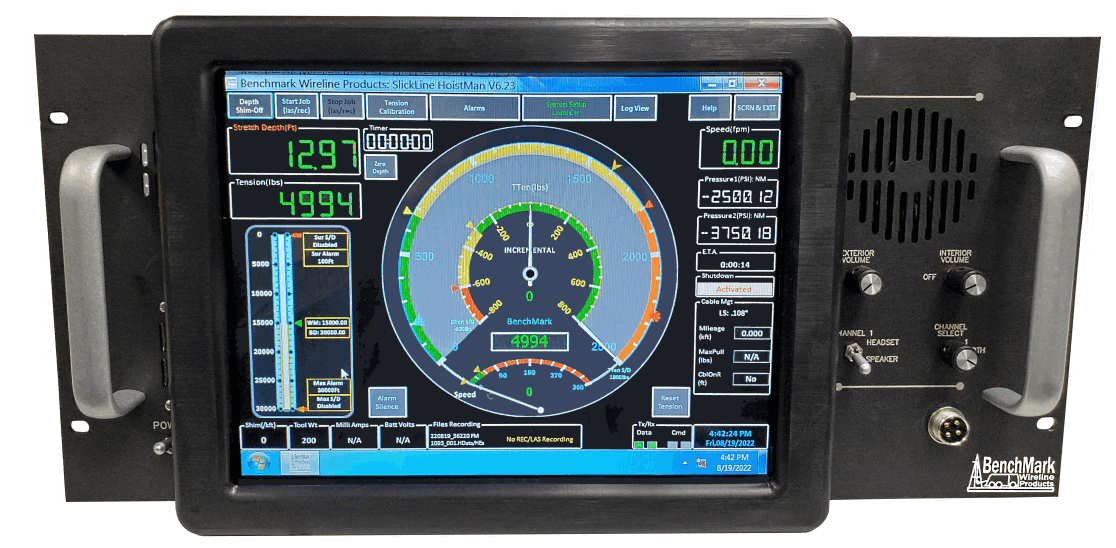

AMD6A344

Our Winodws based Slickline combo panel offers the highest levels of functionality along with the ability to manage your cable milage realtime.

Mobirise

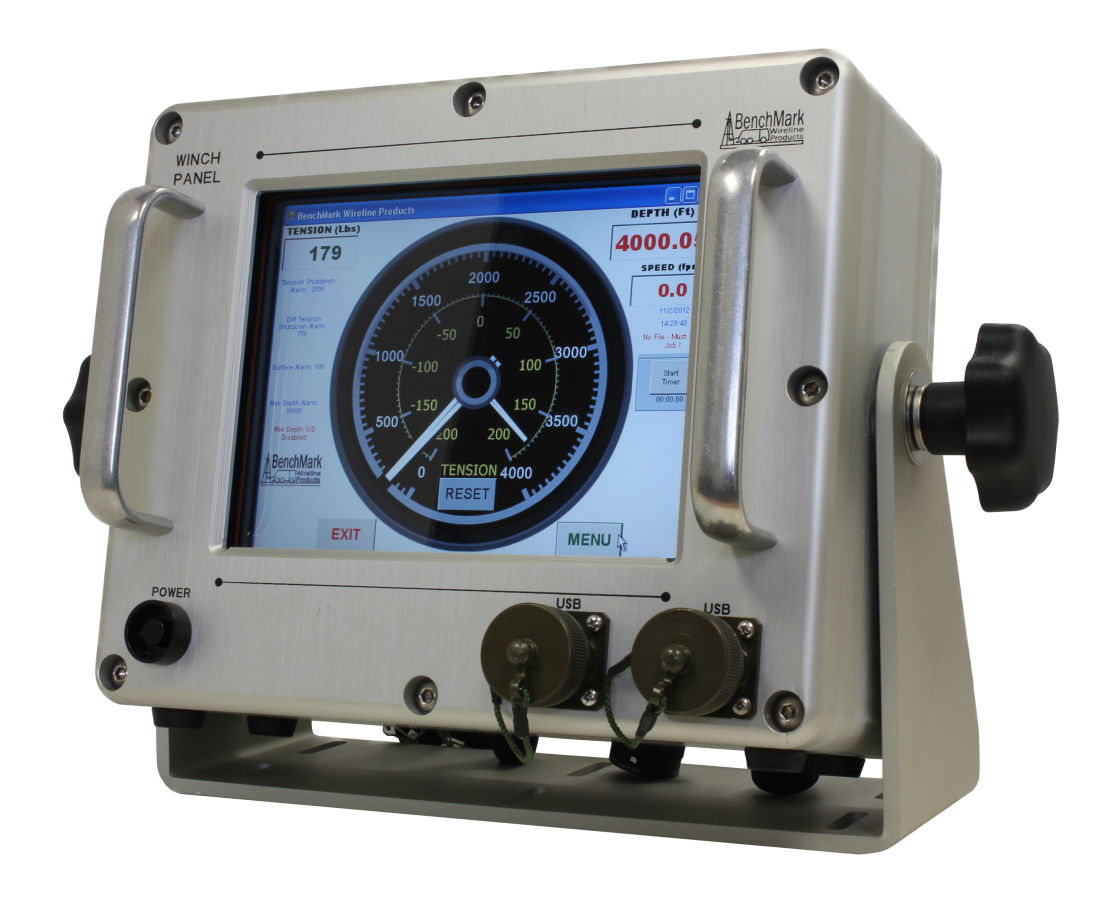

AMD7A099

The 099 series panel is a Windows based, Zone II certified unit that can be used in the harshest environments.

Compact Panels

Mobirise

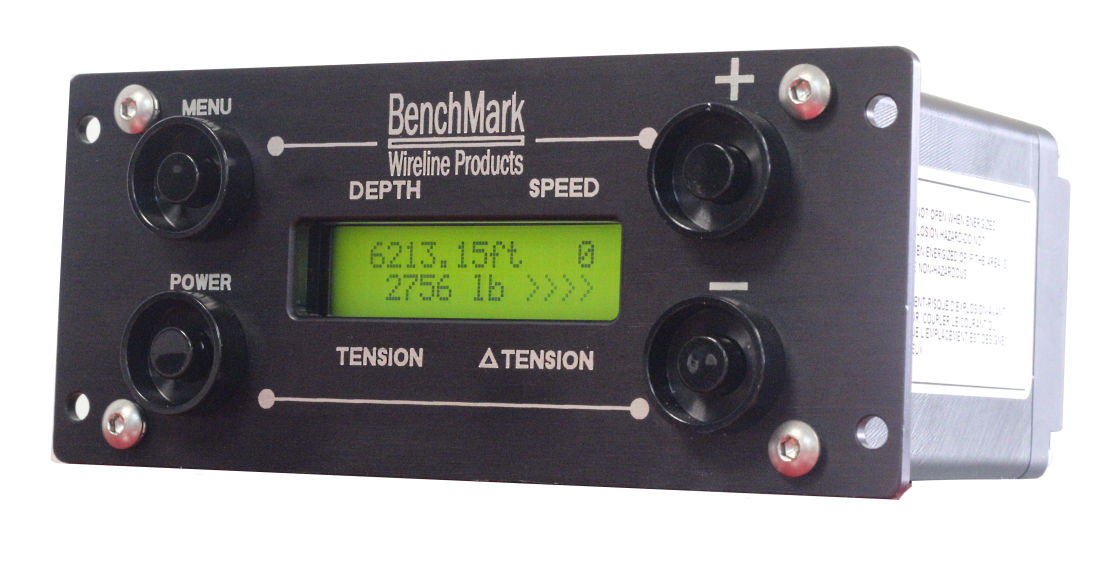

ALS6A603/606

The ALS6A series compact panels are battery backed up and great for budget builds. It has built in data recording, both models are waterproof, and the 606 version is Zone 2 certified.

Mobirise

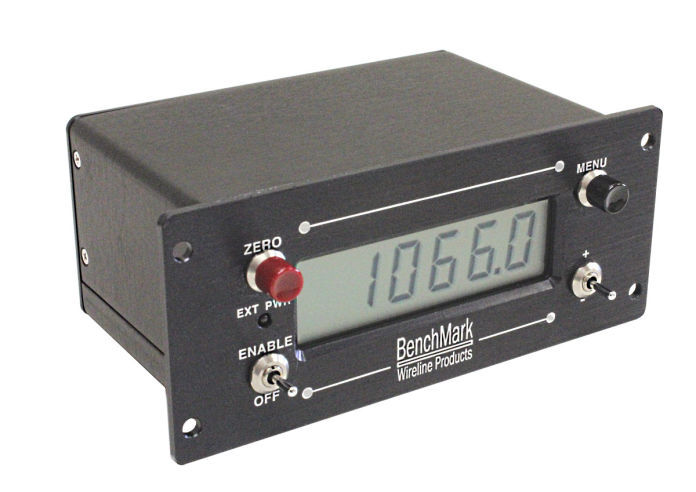

ALS6A100

This backup depth panel is capable of measuring all the lines our main depth panels run allowing the operation to have completely redundant depth. We recommend that this unit is used in conjunction with all winch operator panels.

Mobirise

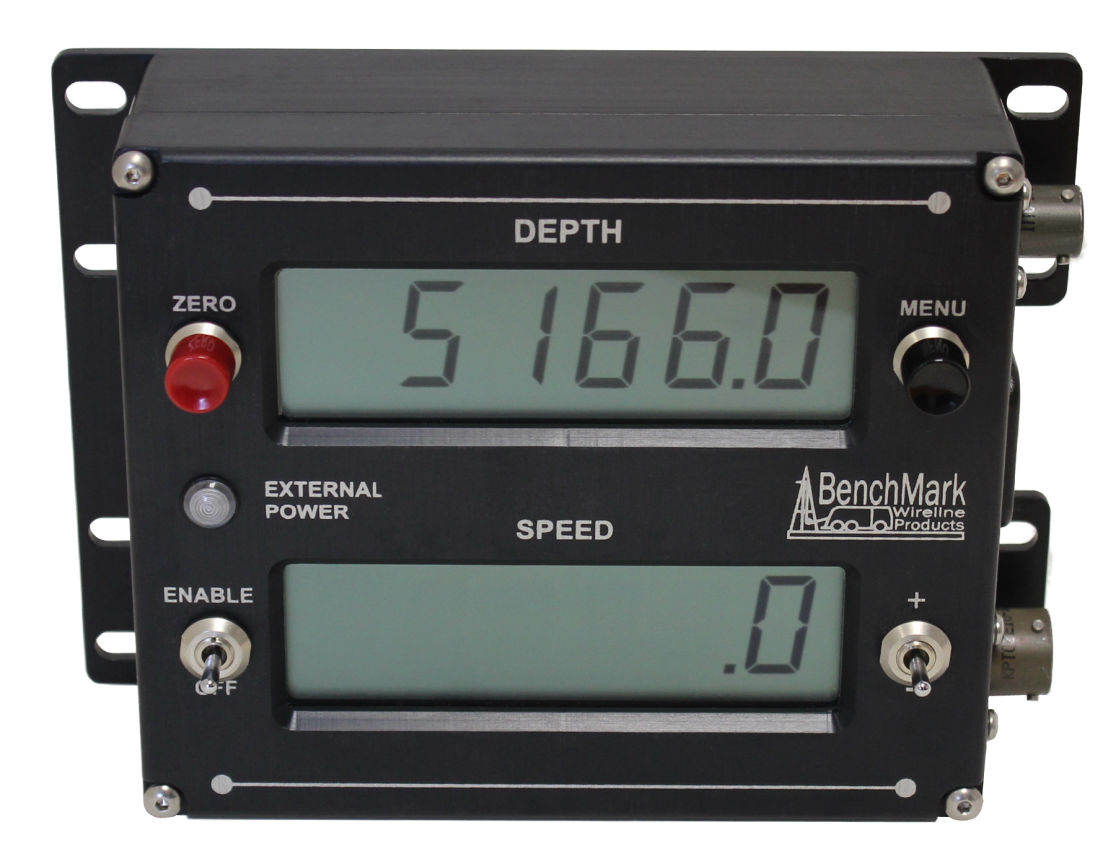

ALS6A200

When depth is the main goal, this simple depth and speed panel is a perfect fit. This unit is capable of running all line sizes as well as recording data direct to an SD card.

Mobirise

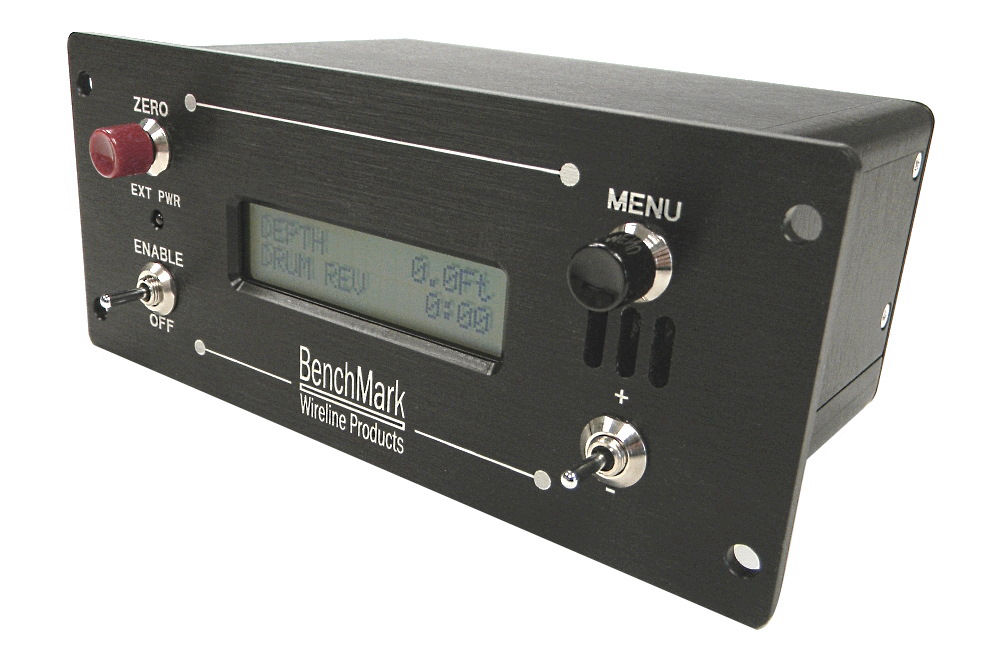

ALS9A250

This Drum Counter panel is the highest level of redundancy for all logging applications. This panel is a substitute for the ALS6A100 for backup depth, but also includes a counter for drum revolutions, adding a 3rd completely independent measurement.

Mobirise

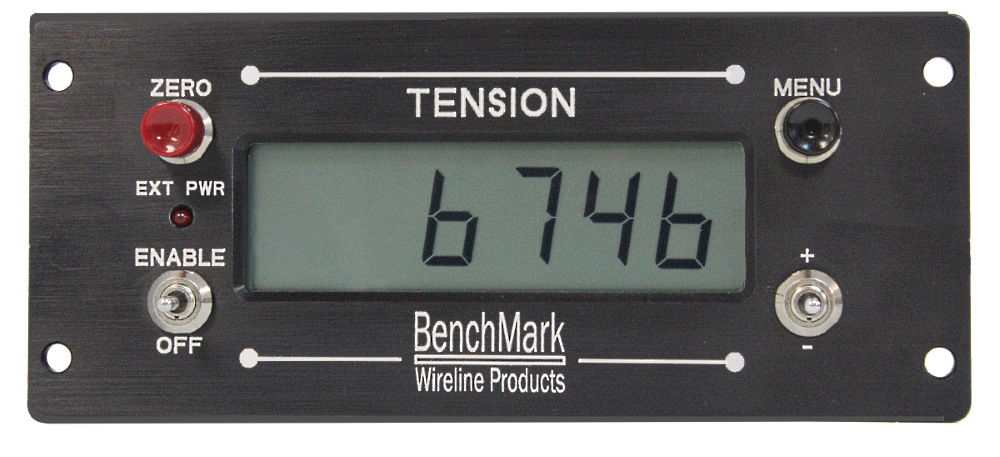

ALS8A Series

Our small tension panels come in 3 varieties to fit any application. We offer a 2mV/V passive, 0 - 1.5VDC differential, and 4 - 20 mA current loop compatible unit. Select the spec sheet below.
