Masts

Lightweight Aluminium

Description

BenchMark Wireline is a market leader in the design and manufacture of Logging Masts. The company has been making logging masts since 1981. BenchMark Wireline manufactures both lightweight portable aluminum and heavy duty steel lattice masts.

Features and Benefits

BenchMark Wireline offers both standard and custom logging masts. The load requirement determine the size and type of mast.

The lightweight tubular masts are designed to be portable and are normally used in off-shore operations. They are very strong for their size and are constructed of aluminum. They are offered in 28, 32 and 45 foot lengths.

The lightweight mast are normally fitted with a 1000 kg winch. The mast are hydraulically operated and have automatic locking pins for securing each section. The locking pins and scoping systems have fail-safe mechanisms built into the design.

- Hydraulic brakes for maximum safety
- Certified for Zone 1 and 2 use
- Superior longevity, serviceability and repair

- Masts are both lightweight and strong
- Aluminum masts are corrosion resistant
- Can be mounted on trucks
- Are very portable and transportable
- Contain fail-safe anti-freefall technology
- Safety pins automatically extend and manually retract

Aluminum Tubular Masts

• Lightweight, portable, sturdy

• Truck mountable even on smaller vehicles

• Mast lengths from 28 to 45 feet

• Efficient electric or hydraulic power pack – Zone 1 and 2 approved

• One 1000 kg winch for excellent performance

• Depth and tension measuring devices available

• Light weight and portable

• Full training and support included

Safety Features - All Designs

• Fail-safe anti free-fall technology

• Automatically extending, manually retracting locking pins

• Hydraulic braking

• CE Marking

• Class 1 Division 2

• Class 1 Zone 2

• DNV classifications

• ATEX Zone II

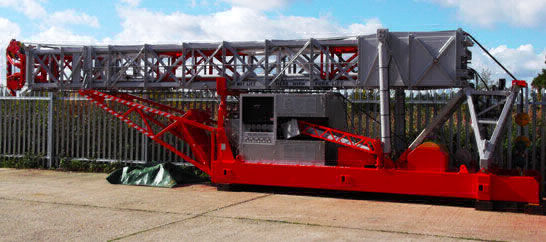

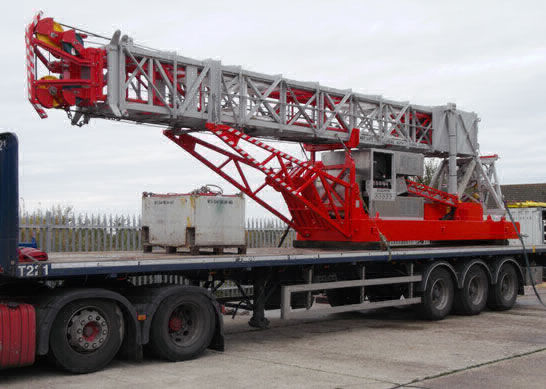

Logging Masts - Heavy Duty Steel

Description

BenchMark Wireline a market leader in the design and manufacture of Logging Masts. The company has been making logging masts since 1981. BenchMark Wireline manufactures both lightweight portable aluminum and heavy duty steel lattice masts.

Features and Benefits

The heavy duty steel lattice logging masts are most often used on off-shore well sites. They are very strong and durable and are offered in heights of 75 and 90 feet.

Steel lattice masts offer several advantages. They have better high wind performance than solid masts. Any damage to the mast is easily observable. Moreover, repairs to a lattice mast are often easier to make than solid mast designs. Corrosion protection is also applied to every surface.

The heavy duty masts are normally fitted with a seven ton winch plus two additional two ton winches. All are hydraulically operated.

All have automatically extending and manual extracting locking pins for safe scope-up and scope-down. All have fail-safe and antifreefall technology. All models have hydraulic braking.

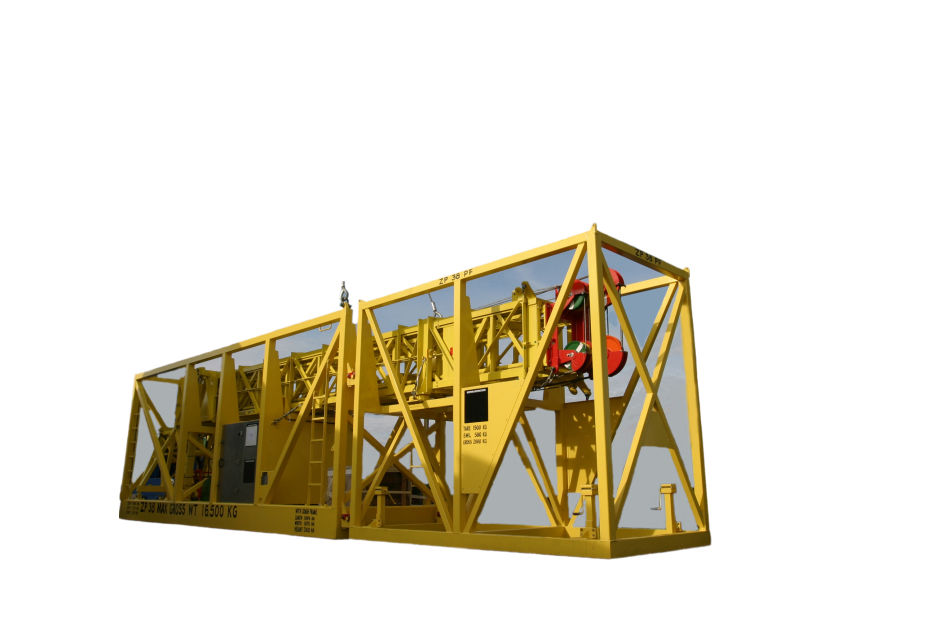

A lightweight 75 foot Heli-Portable steel fly-in mast is also available.

A Zone 1 or 2 approved electric or pneumatic power pack is available as well as a remote or safe-area diesel option.

Also a Zone 1 and 2 tension and depth measuring device with elbow is available.

• Masts are very durable
• Masts have excellent high wind performance
• Damage is easily observable
• Repairs are more easily performed
• All the logging load is taken on the lock pins, strictly mechanical
• Safety lock pins automatically extend and manually retract
• Hydraulic brakes for maximum safety

• Certified for Zone 1 and 2 use
• Superior longevity, serviceability and repair

Steel Lattice Masts

• Efficient electric or hydraulic power pack – Zone 1 and 2 approved

• Safe operations even in 50 mph winds un-guyed

• Properly guyed, the masts can withstand 130 mph winds

• 3 winch design for excellent performance

• Depth and tension measuring devices available

• Extra heavy duty shock mounted supports

• Zone 1 equipment is fitted as standard

• Hydraulics are air motor driven

• Alternative electric and diesel power packs available

• Optional racking arm available

• Tilt, scope and lock pins are hydraulically controlled from one panel

• Complete with set of rigging

• Full training and support available

Safety Features - All Designs

• Fail-safe anti free-fall technology

• Automatically extending, manually retracting locking pins

• Hydraulic braking

• DNV classifications

• ATEX Zone II

• CE Marking

• Class 1 Division 2

• Class 1 Zone 2
